Coming from Perforce, where an exclusive checkout holds a file until it is released? See Coming from Perforce for how the two models compare.
Where you see a soft lock

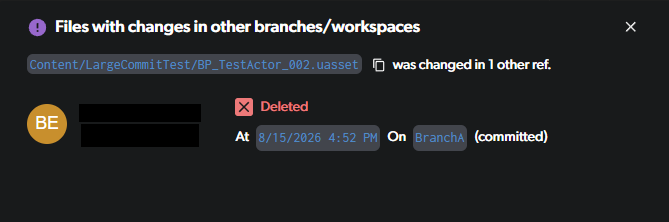

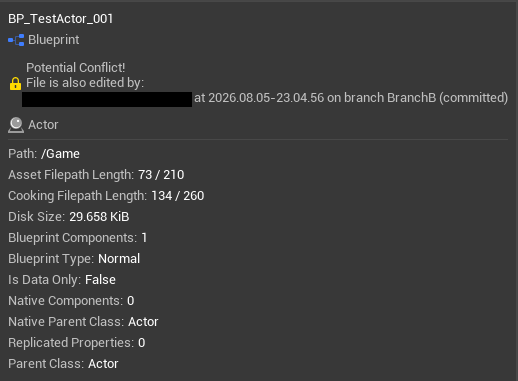

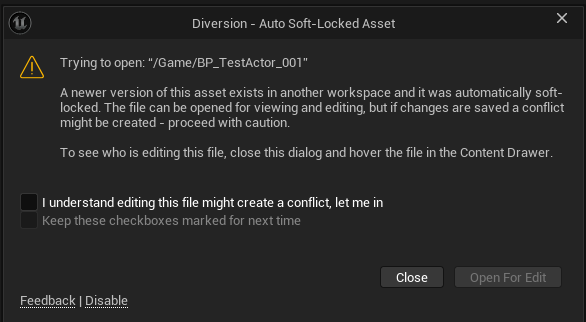

The indicator flags files that have been changed somewhere else in the repository — uncommitted edits in another workspace, or commits on another branch. In the desktop and web app, a warning badge appears next to the file in the tree view. Its tooltip reads Also changed in N other branches/workspaces - click to view. Click the badge to open Files with changes in other branches/workspaces. For each other branch or workspace, it lists who changed the file, the type of change, when, the branch, and whether the change is committed. In Unreal Engine, the plugin surfaces soft locks at the two moments that matter. Opening an asset someone else is editing shows a confirmation prompt. Saving one asks what to do in the save dialog: lock the file first (on plans with hard locks), save anyway, or skip the save. Both prompts are controlled by one setting and can be turned off.



What happens when two people edit the same file
Because a soft lock does not block anyone, two people can edit the same file at once and Diversion reconciles the difference afterwards. This is the sequence when both are on the same branch:1
User A starts editing
User A modifies
Level.umap. Nothing is reserved, and the file stays writable for everyone.2
User B sees the soft lock
A warning icon appears on that file for everyone else on the branch, and clicking it shows that User A is editing.
3
User B edits the file anyway
Nothing blocks them. There is no checkout to wait on, and nobody to chase for a release.
4
User B commits first
User B’s version becomes the latest on the branch.
5
User A resolves the conflict
A conflict arises with User A’s uncommitted changes, and User A resolves it — see Conflicts.
Soft locks and binary files
Text files can be merged line by line, so a conflict on one is usually a small cleanup. Binary assets such as.umap, .uasset, and .fbx cannot be merged — one version has to win, and the other person’s work has to be redone. The exception is Blueprints, which can be merged with the Unreal plugin.
This makes the soft lock indicator most valuable on exactly those files. Treat it as a prompt to talk to your teammate before starting, rather than something to resolve afterwards.
If that is not reliable enough for your team, Hard Locks block the second commit outright and can lock matching files automatically by extension. Hard locks are available on Studio and Enterprise plans.
